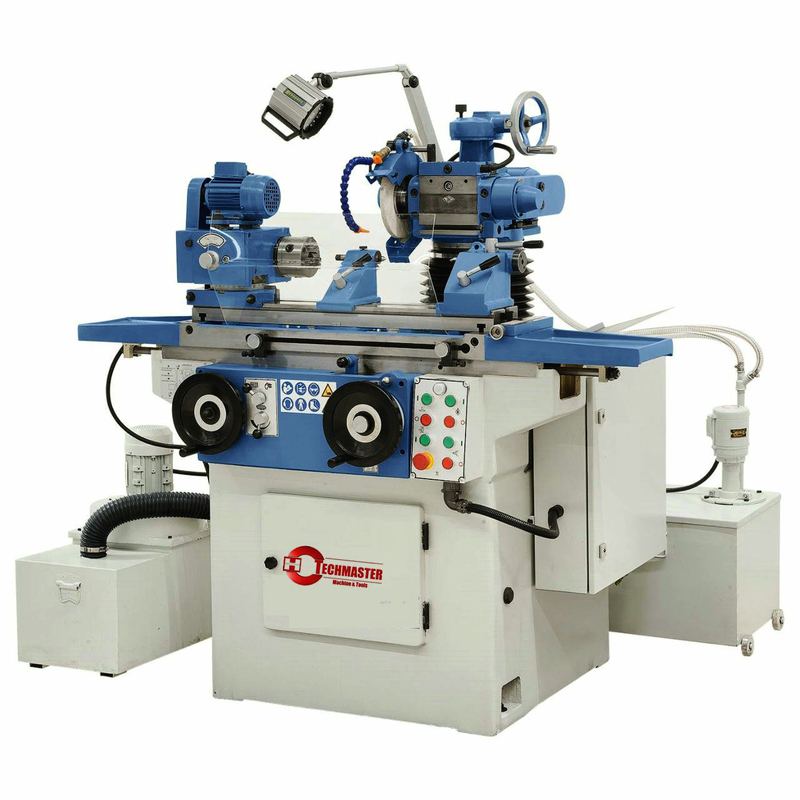

The USM 500 universal grinding machine features a variety of applications for professional users, requiring minimum space. High user-friendliness and a wide range of standard accessories guarantees a maximum of performance. Round, flat and tool grinding combined in one machine Heavy cast-iron construction allows vibration-free machining Special spindle bearing for precise sanding results Used in tool and die making, production as well as in training workshops Various application areas increase productivity Coolant device, central lubrication and dust extractor as standard Easy gear shifting allows quick speed change Hydraulic or manual longitudinal adjustment of table (in x-axis) Headstock adjustable in height and tiltable (-100° to + 100°) | |||||||||
USM500
Max. workpiece diameter 200 mm
Distance between centers 500 mm
Surface grinding 200 x 50 mm
Outside grinding Ø 5 - 50 x 400 mm
Inside grinding Ø 10 - 50 x 75 mm
Max. workpiece weight 10 kg
HeadstockTilting range -90° to +90°
Speed 110 / 200 / 300 rpm
Spindle taper MT 2
Chuck diameter 100 mm
Grinding headstockTilting range -100° to +100°
Travel
Cross 230 mm
Vertical 210 mm
Scale division vertical 0,01 mm
Vertical adjustment per handwheel rotation 2 mm/rev.
Scale division 0,02 mm
Cross adjustment per handwheel rotation 2 / 4 mm/rev.
Sanding disc 200 x 20 x 75 mm
Speed 2500 rpm
Speed inside grinding spindle 13500 rpm
Grindstone Ø 26 x 20 x 6 mm
Ø 10 x 10 x 3 mm Working table
Max. travel 480 mm
Hydraulic longitudinal feed 0,01 - 6 m/min
Table tilting range -45° to +45°
Taper of tailstock sleeve MT 2
Travel of tailstock sleeve 15 mm
Total motor power 2,5 kW
Motor power of sanding disc 1,1 kW
Machine dimension (L x W x H)* 1500 x 1150 x 1400 mm
Weight approx. 1300 kg
Coolant device
Dust extractor
Safety guard
Dividing head
4 grinding discs
3-jaw chuck 100 mm
Left and right tailstock
Live centre
Half live centre
Balancing stand
Spindle extension
Vice for surface grinding
5 tappets
Dresser
Central lubrication
Inside grinding device incl. 2 grinding stones
