Quality Machine Tools

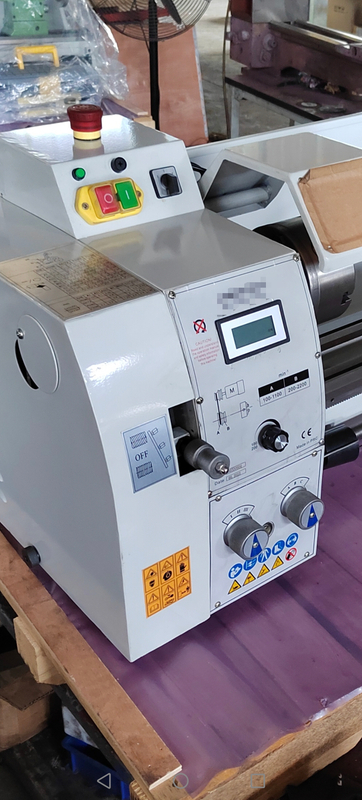

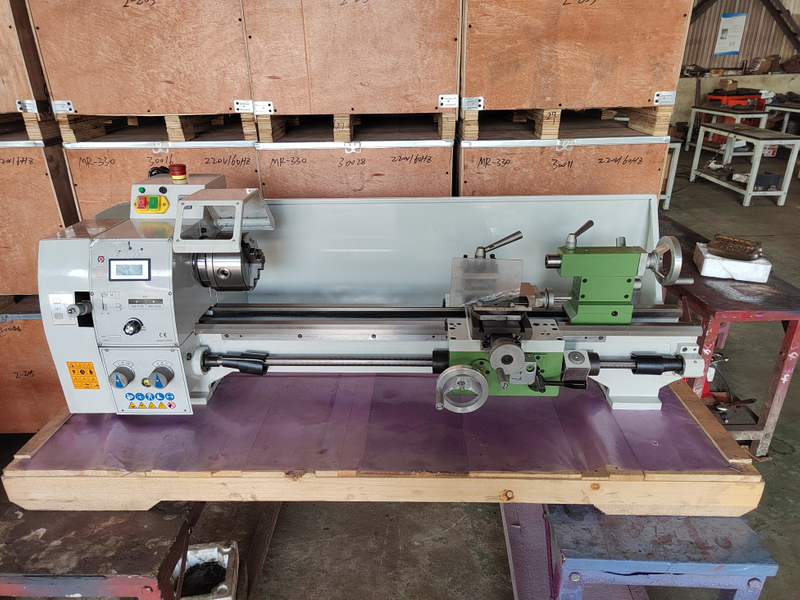

CQ6125W -750MM
SPECIFICATION | CQ6125W-V(VARIABLE) |
Max. turning diameter over bed | 250mm |
Max. length of work piece | 750mm(550MM IS OPTIONAL) |
Max. swing diameter over tool post | 140 mm |
Spindle bore | 26mm |
Spindle taper | MT. 3 |
Metric threads available | 15 |
Inch threads available | 27 |
Metric pitches | 0.1~2.5mm |
Inch pitches | 8~56 /n″ |
Longitudinal-feed on spindle tool post | 0.04~0.56mm/r |
Cross-feed on spindle tool post | 0.02~0.42mm/r |
Max. travel of tailstock sleeve | 65mm |
Tailstock sleeve taper | MT. 2 |
Spindle speeds | Belt drive |
Spindle speeds range | 125~2000r/mim |
Motor | 750W(DC MOTOR)/ 1000W/BRUSHLESS MOTOR) |
Net weight (without base) | 180KGS |
Bare machine size (L× W× H) | 1400× 650× 560mm(1250X650X560mm) |
