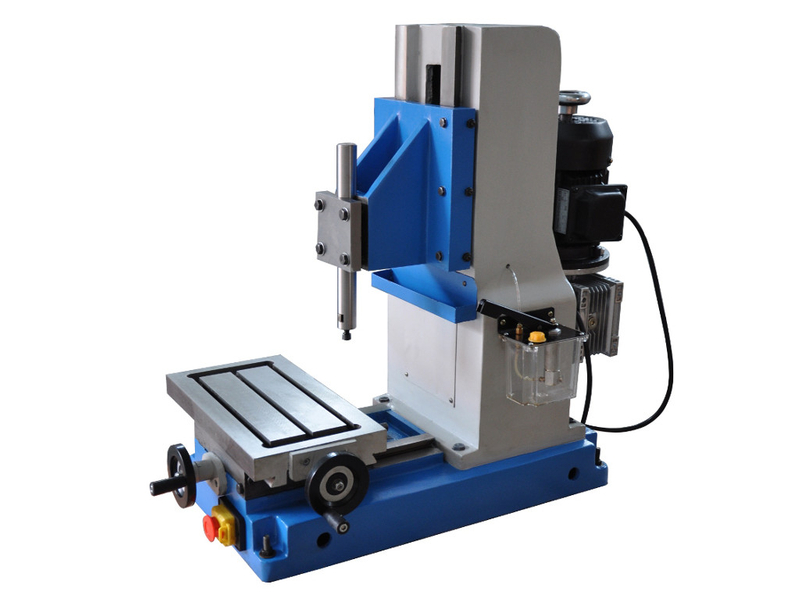

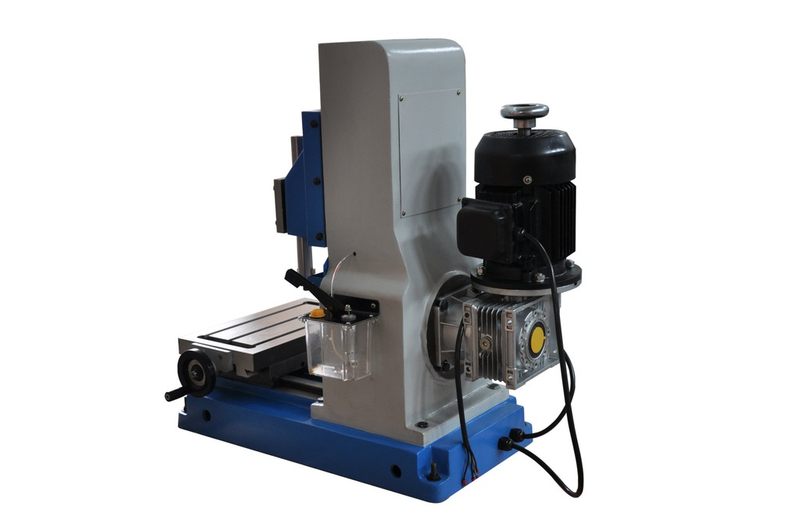

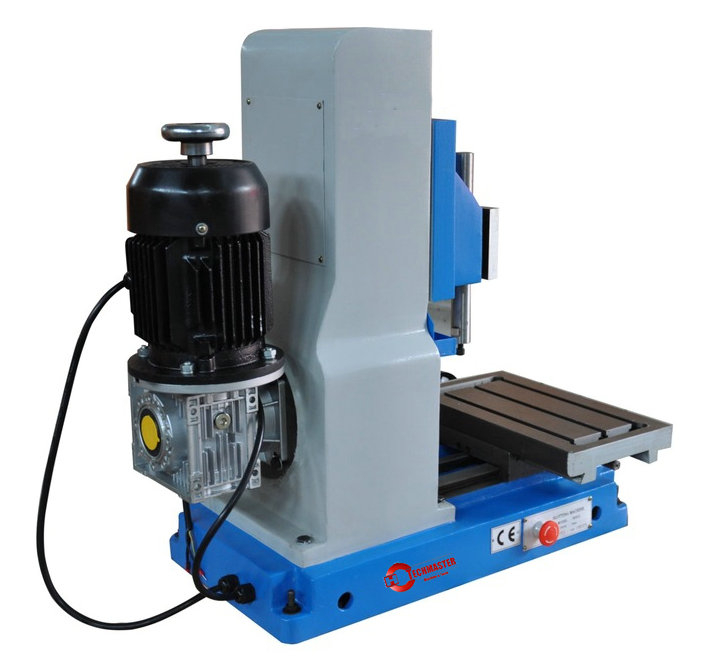

B5012 SLOTTING MACHINE
*For matching the key groove and spline joint during single and small batch production, especially suitable for matching the key groove in blind hole.
*The assembling of the workpiece is not limited by the column, it is flexible for matching the key groove in large parts
The max. clamping workpiece dia. for the worktable | 420mm |
The max. clamping workpiece height for the worktable | 120mm |

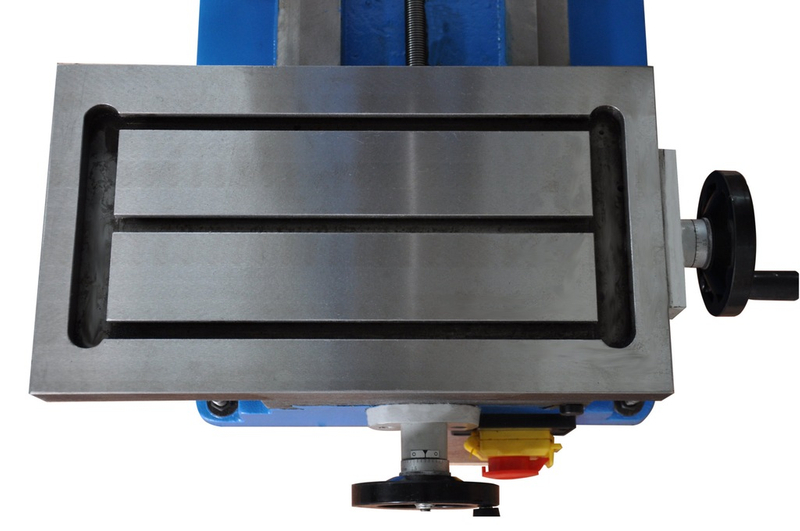

Longitudinal travel for the worktable | 120mm |
Cross travel for the worktable | 150mm |

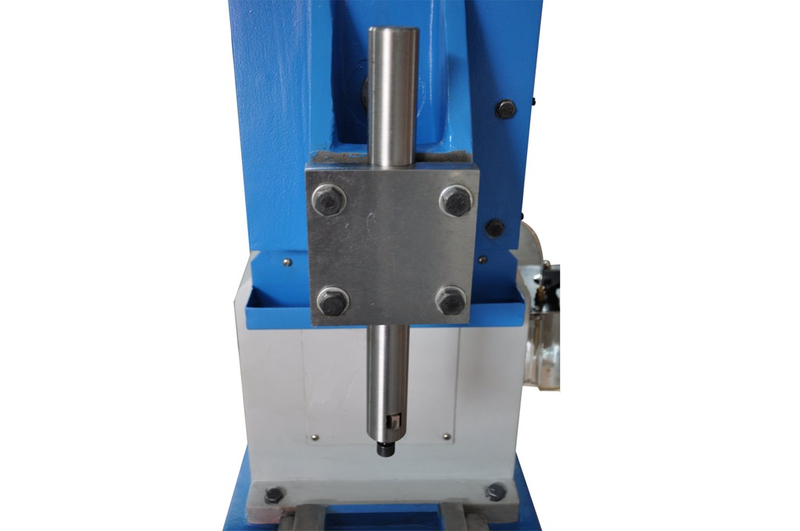

The max. travel for the cutter arbor | 120mm |
Motor power | 1.1kW |
N.W./G.W. | 196/220kg |
Packing size | 107x62x92 cm |
