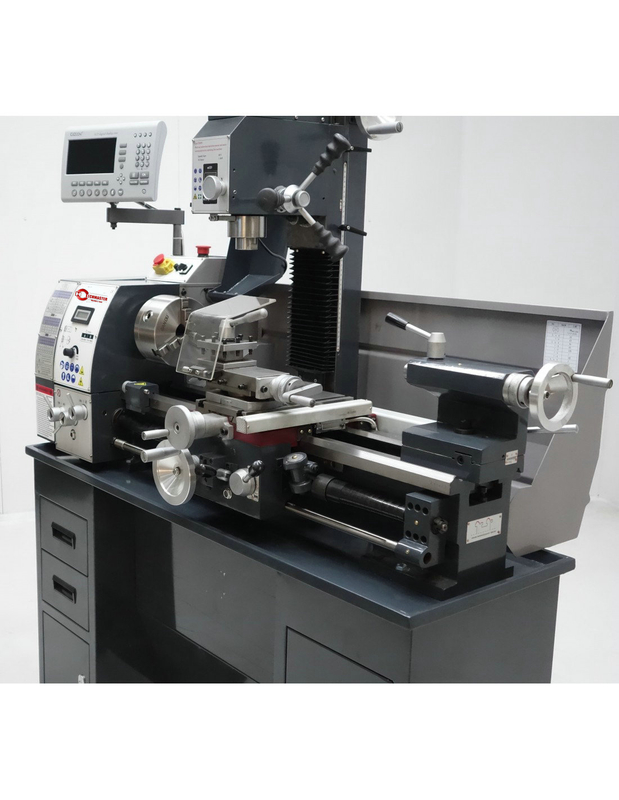

CENTER290VF
Turning lathe | |
Distance between centres | 700mm |
Swing over bed | 280mm |
Spindle bore taper | MT4 |
Spindle bore | 26mm |
Range of spindle speeds | 50-1850rpm |
Range of longitudinal feeds | 0.07-0.65mm/r |
Range of cross feeds | 0.017-0.12mm/r |
Range of inch threads | 8-56tpi |
Range of metric threads | 0.2-3.5mm |
Top slide travel | 60mm |
Cross slide travel | 140mm |
Tailstock quill travel | 80mm |
Tailstock quill taper | MT2 |
Motor | 1.1kw |
Milling attachment | |
Max. drilling capacity | 20mm |
Height adjustment | 260mm |
Spindle taper | MT2 |
S Spindle stroke | 50mm |
Range of spindle speeds | 50-2250rpm |
Head tilt left and right | ± 90º |
Motor | 750w |
