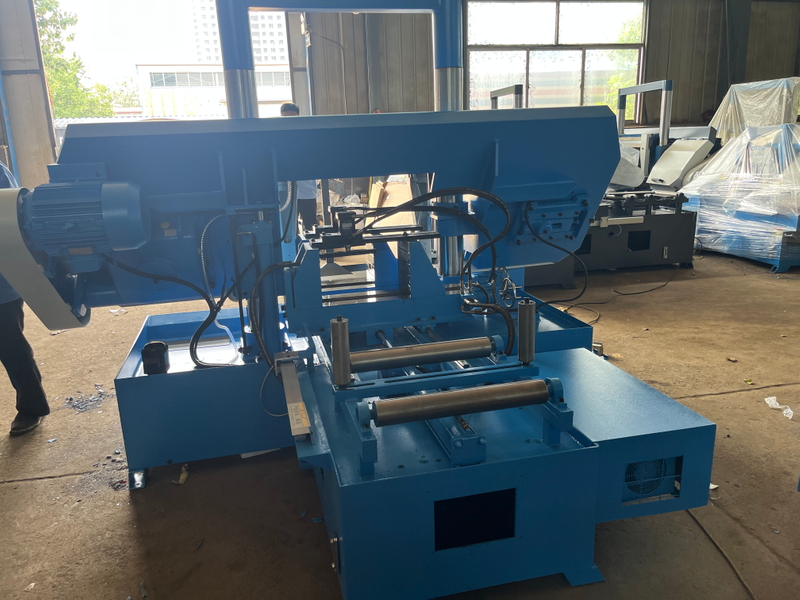

GNC4250-GNC4240
Spec | Unit | GNC4240 | GNC4250 |
Sawing capacity | mm | 400-400X400 | 500-500X500 |
Speed of Band Saw Blade | m/min | 27,45,69 | 27,45,69 |
Band Saw BIade Specification | mm | 5000X41X1.3 | 5800X41X1.3 |
main motor power | kw | 5.5 | 5.5 |
Hydraulic motor | kw | 0.75 | 1.5 |
Cooling pump | w | 90 | 90 |
Working clamping mode | Hydraulic AUTO | Hydraulic AUTO | |
Feeding ways | Hydraulic AUTO | Hydraulic AUTO | |
Weight | KG | 2000 | 2400 |
Packages Dimensions | mm | 2460×2320×2000 | 2960×2320×2200 |
CNC metal band sawing machine features:
1. The machine tool is equipped with mechanical, electrical and hydraulic functions. It has the functions of automatic feeding, automatic feeding, and automatic cutting of the saw frame after cutting.
2. The intelligent human-machine interface makes mechanical operation extremely simple and efficient;
3. The machine abnormality message and troubleshooting instructions are automatically displayed. The high-efficiency and energy-saving PLC is combined with the simple design of the circuit board and the excellent space of the electrical box, which not only ensures the low failure rate of the machine, but also facilitates maintenance and saves space.
4. Digital scale control is adopted, and the feeding precision is high.
5. The machine feeding guide adopts the precision linear guide pair, which has high movement precision and good wear resistance.
