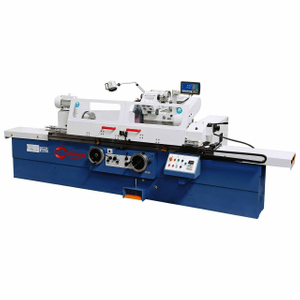

CYLINDRICAL GRINDER URS2000 N
Quantity: The URS 2000 N universal cylindrical grinding machine is suitable for external cylindrical grinding of workpieces up to 320 mm diameter. Part of the standard equipment is the internal grinding device, increasing the range of applications significantly. A popular model for machine construction, mould and tool making and production of small series.
When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale
Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy
Precisely balanced spindle head and solid grinding head guarantees extraordinary results at any type of operation
Strong reinforcements and solidly designed walls of the machine base makes it resistant to temperature fluctuations and deformations
Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments
Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing
Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel
Stepless feed adjustments with selective programmable hold time at the end of each table movement
Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide
Hydraulic or manual repositioning of grinding spindle stock
Guideways in x- and y-axis are precisely constructed and hand-polished-
URS2000N
Distance between centers 2000 mm
Center height 180 mm
Outside grinding diameter 8 - 320 mm
Max. workpiece weight 150 kg
Inside grinding diameter with rest 35 - 100 mm
Inside grinding diameter without rest 30 - 100 mm
Inside grinding depth max. 125 mm
Table tilting range max. +5° to -2°
Table longitudinal travel max. 2100 mm
Table feed 0,1 - 3 m/min
Man. table travel / hand turn 6 mm
Headstock
Spindle speed, stepless 25 - 220 rpm
Spindle taper MT 4
Tilting range spindle +90°
Grinding headstock
Sanding disc 500 x 50 x 203 mm
Spindle speed 1330 rpm
Speed inside grinding spindle 10000 rpm
Tilting range grinding headstock +/- 30°
Travel of grinding head 200 mm
Scale division 0,0025 mm
Rapid feed, hydraulic 50 mm/min
Tailstock
Taper of tailstock sleeve MT 4
Travel of tailstock sleeve 30 mm
Motor power
Sanding spindle 7,5 kW
Working spindle 1,5 kW
Inside grinding spindle 1,1 kW
Machine dimension (W x D x H) 5400 x 2000 x 2000 mm
Weight approx. 6200 kg
Standard accessories
2-axis digital readout.
Grinding wheel
Grinding wheel flange
3-jaw chuck diam. 200 mm
2 pcs. open rest
Closed rest
Inside grinding device
LED machine light
Balancing stand
Balancing arbor
Frequency inverter
2 dead centers
Measuring plate
Coolant device
Splash guard front and back
Grinding wheel dresser
Workpiece carrier
Tools
