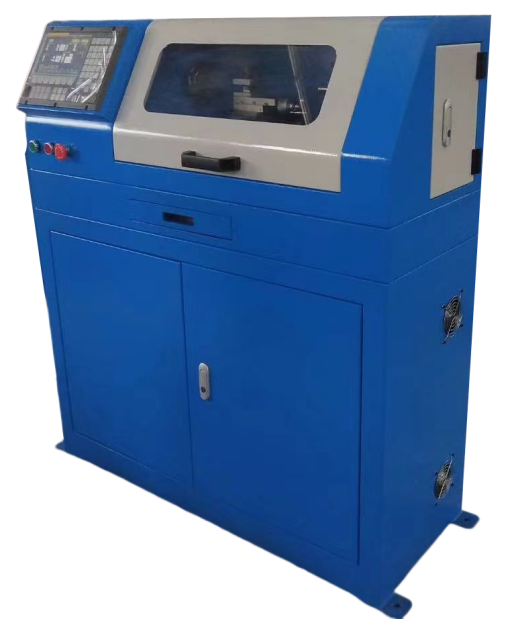

CK0618 NUMERICAL CONTROL
Swing over bed | 180mm |
maximum length of workpiece | 300/350mm |
Machine bed width | 100mm |
Range of spindle speed | 50-2250r/min |
Taper of spindle bore | MT3 |
spindle bore | 20mm |
Maximum torque of X-axis | 1.5Nm |
Z-axis maximum torque | 2Nm |
X-axis stroke | 80mm |
Z-axis travel | 250mm |
Tailstock sleeve stroke | 250mm |
Tailstock sleeve taper | MT2 |
Minimum setting unit | 0.001mm |
Motor Power | 400/500w |
Weight (net/gross)) | 90/100kg |
Overall dimensions | 900*400*1250mm |
