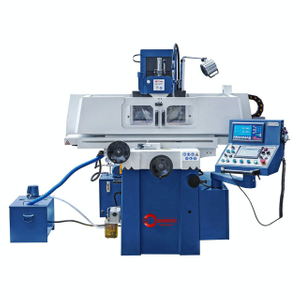

BSG 40100 PLC
Quantity: -
BSG 40100 PLC
The BSG 40100 PLC is a suitable model for processing of workpieces up to 600 kg and a grinding surface up to 1130 x 450 mm. The extensive range of standard equipment ensures optimal performance eg. Computer automated vertical feed, parallel dresser with micrometre setting, magnetic clamping plate with demagnetization device and 2-axis digital readout.
Separate hydraulic unit with heat exchanger eliminates vibrations and thermal strain
Hardened and polished table guides cross and longitudinal. Durcite- B coated counter guides ensure high rigidity and low friction
Longitudinal table guide V-flat, cross table guide double V
Computer automated feed via rapid feed to workpiece height, adjustable roughing and surface finishing stroke, automatic return into start position at end of program
Axial and radial bearings in grinding spindle are clamped clearance free
Annealed machine base guarantees high accuracy
Strong reinforcements and thick walls ensure rigidity
Digital automatic vertical feed features servo motor
End stops allow adjustable longitudinal and cross travel
State of the art hydraulic system guarantees soft table traverse even at high work load
Table dimensions 405 x 1020 mm
T-slot quantity / width 3 / 14 mm
Standard accessories
2-axis digital readout
Siemens SMART-panel IE V3 with touch screen
Electronic handwheel
Grinding wheel
Flange
LED machine light
Magnetic clamping plate
Balancing stand
Balancing arbor
Parallel dresser
Protective covers
Demagnetization device
Coolant device
Dressing diamond
Machine feet
Central lubrication
Tools
Electric magnet clamping plate 400 x 1000 mm
Max. travel, longitudinal 1130 mm
Max. travel, cross 450 mm
Max. distance spindle / table 580 mm
Max. workpiece weight* 600 kg
Grinding wheel 350 x 40 x 127 mm
Table speed, hydraulic 5 - 25 m/min
Cross adjustment
Automatic adjustment, cross 0,5 - 8 mm/Stroke
Rapid feed, cross 990 mm/min
Adjustment per handhweel rotation 5 mm/rev.
Scale division on handwheel 0,02 mm
Vertical adjustment
Automatic adjustment, vertical 0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical 480 mm/min
Adjustment per handwheel rotation 2 mm/rev.
Scale division on handwheel 0,005 mm
Motor power of sanding spindle 4,0 kW
Spindle speed 1450 rpm
Motor power of hydraulic pump 2,2 kW
Motor power of vertical feed 0,5 kW
Length 3100 mm
Depth 2200 mm
Height 1900 mm
Weight approx. 3700 kg
* with magnet clamping plate
